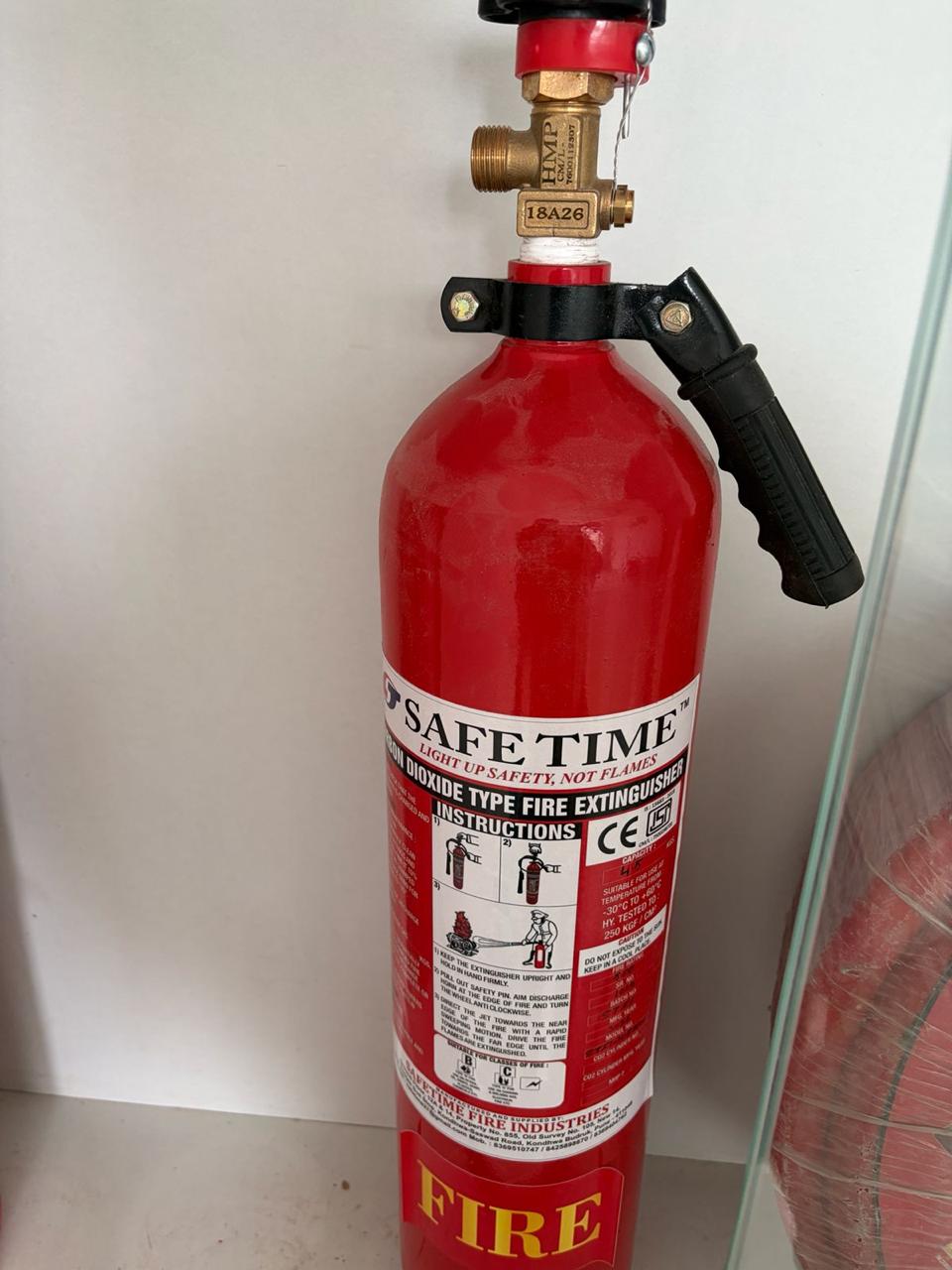

4.5 KG- CO2 Fire Extinguisher

A 4.5 Kg CO₂ (Carbon Dioxide) Fire Extinguisher is a highly effective fire protection device designed for combating electrical fires and flammable liquid fires. It extinguishes fires by displacing oxygen and cooling the burning material without leaving any residue, making it ideal for sensitive equipment and clean environments.

Key Features

Capacity: 4.5 Kg

Extinguishing Agent: Carbon Dioxide (CO₂)

Clean agent – leaves no residue after discharge

Non-conductive and safe for electrical equipment

Suitable for Class B and Electrical Fires

High-performance discharge horn

Corrosion-resistant steel cylinder

Easy to operate and maintain

Fire Classes Covered

Class B: Flammable liquids such as petrol, diesel, paints, solvents, and oils

Electrical Fires: Computers, servers, switchboards, electrical panels, transformers, and other energized equipment

Technical Specifications

Type: CO₂ Fire Extinguisher

Capacity: 4.5 Kg

Extinguishing Agent: Carbon Dioxide Gas

Cylinder Material: Seamless Steel

Discharge Range: Approximately 1–3 meters

Discharge Time: Approximately 8–12 seconds

Working Pressure: High-pressure stored gas

Finish: Red powder-coated body

Mounting: Wall bracket provided

Applications

Electrical control rooms

Server rooms and data centers

Offices and commercial buildings

Laboratories

Telecommunication facilities

Manufacturing units

Power distribution panels

Hospitals and healthcare facilities

Operating Instructions

Pull out the safety pin.

Hold the discharge horn by the insulated handle.

Aim the horn at the base of the fire.

Squeeze the operating lever.

Sweep across the fire until extinguished.

Benefits

No cleanup required after use

Safe for electrical and electronic equipment

Fast and effective fire suppression

Prevents damage caused by powder or water-based agents

Environmentally acceptable when used as intended

Maintenance

Inspect the extinguisher regularly for damage or corrosion.

Verify the weight periodically to ensure the correct CO₂ charge.

Ensure the safety pin and tamper seal are intact.

Service and hydrostatically test as required by applicable fire safety standards.

Safety Note

Do not use a CO₂ extinguisher in confined spaces without adequate ventilation, as carbon dioxide can reduce oxygen levels. Always maintain a safe distance and follow approved fire safety procedures during operation.
